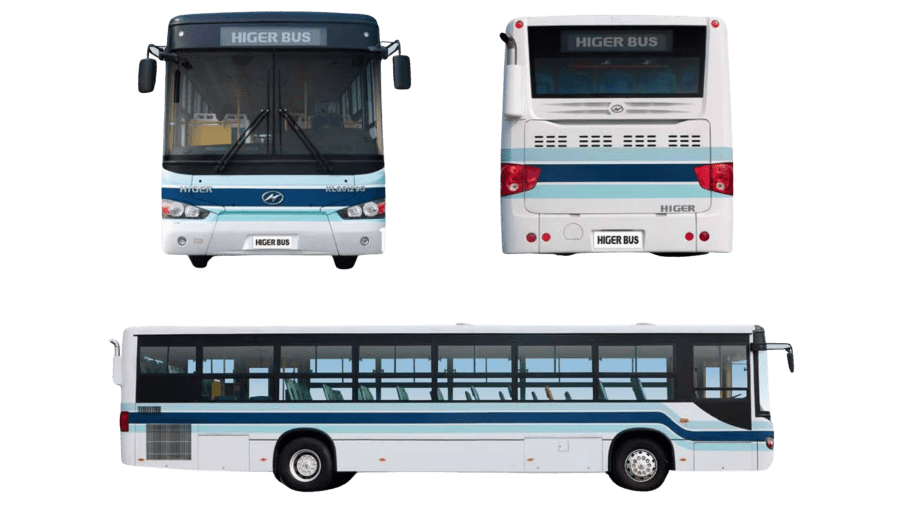

Higer 8M City Bus – Modern Urban Mobility
A Stylish, Efficient, and Comfortable City Bus for Urban Commuting
Introducing the Higer 8M City Bus, designed to provide a comfortable and accessible
urban commuting experience. With its modern features, advanced safety, and eco-friendly
design, the Higer 8M City Bus redefines city travel.
Equipped with state-of-the-art technology and built to last,
the Higer 8M City Bus is your answer to efficient and
sustainable public transportation.
Modern and Durable Design
Built with a galvanized full-steel body and electro-coating for long-lasting durability, the Higer 8M bus ensures a safe and comfortable commute.
Comfortable Seating
The bus features 22+2 foldable seats in the wheelchair area, 26 standing spots, abrasion-resistant flooring, and pneumatic doors for smooth boarding.
Engine Power
Powered by a 162 kW Euro 5 engine, the Higer 8M City Bus offers smooth and efficient performance, meeting global environmental standards.
Transmission
German VOITH automatic transmission with a retarder ensures seamless driving and added control.
Safety Features
Equipped with WABCO ABS, EBS, dual SRS airbags, and a CCTV system with 6 cameras for enhanced monitoring and security
Advanced Technology
The bus is fitted with a 19” foldable LCD screen, a USB port, and wireless microphone, offering passengers a connected and informed journey.
90 km/h
Max Speed
22 seats + 2 foldable wheelchair seats
Seating
400 km
Operating Range
YC4G220-50 (Euro 5)
Engine
Dimensions
8990mm (L) x 2480mm (W) x 3160mm (H)
Technical Highlights
Detail technical highlight
| OVERALL DIMENSION | |
|---|---|
| Model | KLQ6886G |
| Engine Position | Rear |
| Overall Dimension (mm) | 8990 x 2480 x 3160 |
| Wheelbase (mm) | 4400 |
| Front & Rear Overhang (mm) | 1945 / 2645 |
| Kerb Weight (kg) | 9500 |
| Max. Total Mass | 13500 |
| Max. Speed (km/h) | 90 |
| App. / Dep. Angle (°) | 7/8 |
| Fuel Tank Capacity (L) | 200 |
| Operating Range | 400 |
| Gradient |
60km/h at 2.5% 20km/h at 2.5% |
| Turning Radius | 8m |
| CHASSIS SPECIFICATION | |
| Engine |
YC4G220-50 (Euro 5) 162kw/2200rpm , 5.2L, 780N.m/1100~1500rpm |
| Transmission | German VOITH Automatic with retarder |
| Front Axle | Dongfeng disc axle |
| Rear Axle | Dongfeng disc axle |
| Suspension |
Air-suspension, F2/R4 Stabilizer bar F/R , Dual shock absorber |
| Brake System |
Dual-circuit pneumatic brake Disc F/ Disc RWABCO air dryer WABCO ABS EBS |
| Steering System |
RHD Integrated adjustable power steering |
| Tyre | 255/70R22.5 |
| Wheel Cover |
Stainless 4pcs |
| BODY CONFIGURATION | |
| Material | Galvanized Full Steel, Electro-coated |
| Emergency Door | STD |
| Passenger Door |
Pneumatic Inner Swing Single Leaf Door in the Front Pneumatic Inner Swing Double Leaf Door in the Middle |
| Floor Structure |
Flat Abrasion-resistant ooring |
| Driver Seat | Mechanical shock absorption with 3-point safety belt |
| Passenger Seat | 22pcs+2pcs foldable seats at wheelchair area + 26 Standee |
| Windshield | F : 1 Piece, Laminated glass ; R : Steel panel without glass |
| Side Window |
Full-sealed tempered safety glass 70% transparency |
| Rear-view Mirror | Electric rear-view mirror |
| CCTV & Audiovisual System |
SD card player + USB + wireless microphone Middle 19'' foldable LCD 6 ways camera + 500G recordable |
| Interior Trimming |
Retractable dual-semi visor Soft cloth or Plastic Side window curtain Manual Inner-View mirror including Date/Time/Tempreture |
| Roof Hatch | 1 Sets with ventilator |
| Extinguishing Equipment | 2 pieces in engine compartment |
| ELECTRICAL & AC | |
| Alternator | 28V, 2 pcs 150A |
| Batteries | 24V, 2 pcs |
| A/C | NTCAC ESR10 |
| Compressor | BOCK FKX40 |
| Cooling Capacity | 38 kW |
| OTHERS | |
| Electro-coating | 8 years Anti-corrosion/rust (No damage) |
| Wiring & Connector |
Tin-plated ame retardant copper wiring Water-proof |
| Material Standard |
Flame-retardant & Environmental friendly interior German environmental control standard (VDA standard) |
