Type
|
Penal Van (Electric)
|
|
|
Dimension
|
Overall Size (L x W x H)
|
4880 x 1700 x 1995
|
|
|
Wheelbase (mm)
|
2570
|
|
|
Wheel Track Front/Rear (mm)
|
1475/1470
|
|
|
Front/Rear Overhang (mm)
|
1225/1085
|
|
|
Approach / Departure Angle (0)
|
16/18
|
|
|
Full Load Minimum Ground Clearance (mm)
|
≥180
|
|
|
Seating Capacity
|
2, 2+1
|
|
|
Cargo Space (m3)
|
6.1
|
|
|
Cargo Area Dimension L x W x H (mm)
|
2940 x 1550 x 1340
|
|
|
Curb Weight (kg)
|
1900
|
|
|
Laden Weight (kg)
|
3280
|
|
|
Payload (kg)
|
1380
|
|
|
Max. Speed (km/h)
|
≥100
|
|
|
Range (NEDC)
|
235 km / 260 km (ECO Mode)
|
|
|
Gradeability
|
≥20%
|
|
Power Motor
|
Type
|
Permanent Magnet Synchronous Motor
|
|
|
Cooling Type
|
Liquid Cooling
|
|
|
Max. Rated Power (kW)
|
80
|
|
|
Max. Rated Torque (Nm)
|
270
|
|
|
Max. Rated Speed (r/min)
|
8000
|
|
|
Protection Class
|
IP68
|
|
Power Motor Controller
|
Cooling Type
|
Liquid Cooling
|
|
|
Protection Class
|
IP68
|
|
Power Battery
|
Brand & Type
|
CATL LFP
|
|
|
Battery Capacity (kWh)
|
50.23kWh
|
|
|
Cooling Type
|
Nature Cooling
|
|
|
Protection Type
|
IP67
|
|
Vehicle Controller
|
Brand
|
Higer
|
|

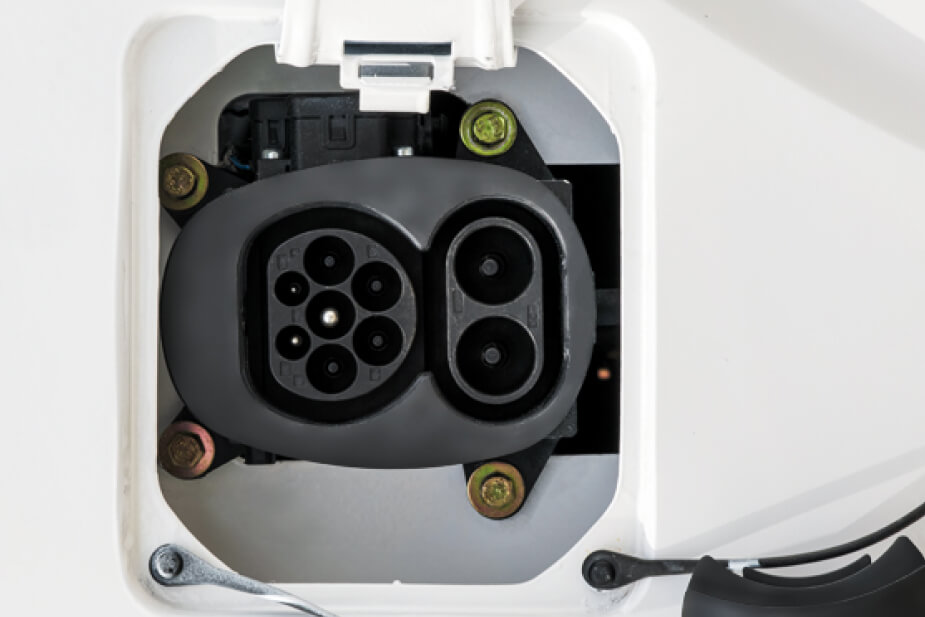

Charging Port
|
Type
|
Type 2 / CCS2
|
|
|
Brand
|
PHOENIX
|
|
Charging Time
|
DC (SOC 20% - 80%)
|
0.75 h
|
|
|
DC (SOC 20% - 100%)
|
1h
|
|
|
AC (SOC 20% - 80%)
|
5h
|
|
|
5h
AC (SOC 20% - 100%)
|
6.7 h
|
|
Chassis
|
Steering
|
Electric Hydraulic Power Steering
|
|
|
Braking
|
Front Disc / Rear Disc
|
|
|
Wheel
|
Aluminium Alloy Sports Rim
|
|
|
Tyre
|
195/70R15LT
|
|
|
Steering Wheel
|
Multifunction Steering Wheel
|
|
|
Airbag
|
Front Dual SRS Airbags
|
|
|
Running Brake
|
Hydraulic Dual Line Brake System ABS+EBD
|
|
|
Hand Brake
|
EPB
|
|
Exterior & Interior
|
Seat
|
Fabric Adjustable Seat (3-point safety belt)
|
|
|
Door
|
5
|
|
|
Side Mirror
|
Electronic Control
|
|
|
Central Door Lock (Electronic)
|
|
|
|
Power Window
|
|
|
|
Steering Wheel (Adjustable)
|
|
|
Components
|
Fog Lights
|
|
|
|
High Position Brake Lamp
|
|
|
|
|
Meter
|
7 Inch LED
|
|
|
Media Player
|
10 Inch LED Android System
|
|
|
Reverse Camera
|
|
|
|
Parking Sensor
|
|
|
|
LED Rear Combined Lamp
|
|
|
|
Compartment Lamp
|
|
|
|
Driving Recorder
|
|
|
|
T-BOX - Telematics
|
|
